AS 2129 Flanges for Pipes Valves and Fittings
AS 2129 Flanges for Pipes Valves and Fittings

AS 2129 Flanges for Pipes Valves and Fittings

AS 2129 flanges for pipes, valves, and fittings are forged using a forging process, with specifications of DN15-DN3000, Table: A, Table: D, Table: E, Table: F, Table: H, Table: J, Table: K, Table: R, Table: S, Table: T. They are suitable for liquid, particle, and gas transportation pipelines, such as chemical, refining, boiler, power, food, and other fields.

Get A Quote >

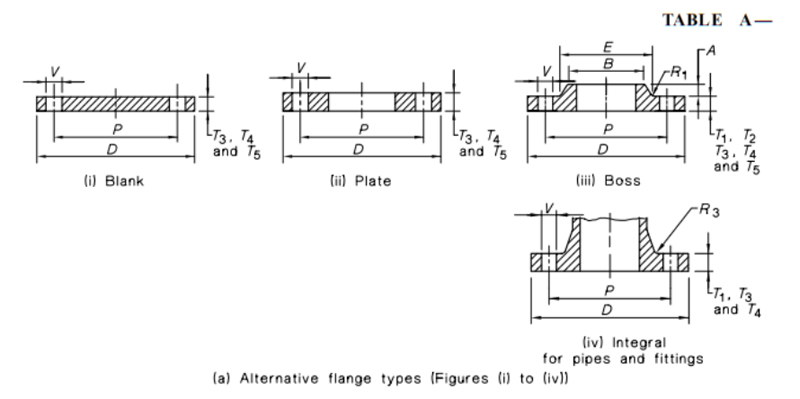

Specifications1 of AS 2129 Flanges for Pipes Valves and Fittings

TABLE 3.2
STAINLESS STEEL FLANGES FOR TEMPERATURES BETWEEN
-200℃ AND 475℃
Flange TableMaterial standard and grade
Temperature range, ℃
-200 to 425-200 to 475
DEFPlates
ASTM A240: 304, 304L, 309S, 310S, 316, 316L, 321, 347, 348		——
Forgings
ASTM A182: F304, F304L, F310, F316, F316L, F321, F347, F348		——
Castings
ASTM: A351: CF3, CF3M, CF8M, CF8C, CH8, CH20, CK20		——
HPlates
——		ASTM A240: 304, 304L, 309, 310,316, 316L, 321, 347, 348
Forgings
——		ASTM A182: F304, F304L, F310, F316, F316L, F321, F347, F348
Castings
——		ASTM A351: CF3, CF3M, CF8M, CF8C, CH8, CH20, CK20

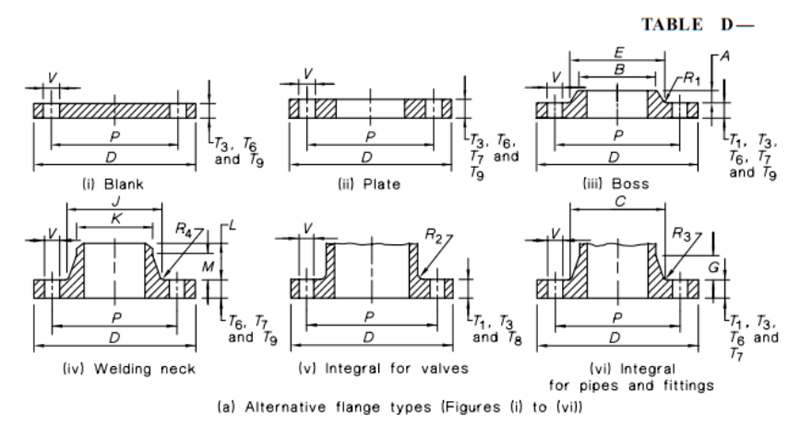

Specifications2 of AS 2129 Flanges for Pipes Valves and Fittings

AS 2129 Flanges for Pipes Valves and Fittings

NOTE: For convenience, only the flat face variant of each type of flange is illustrated.

Nominal
size


DN		Diameter
of
flange

D		Outside
diameter
of O-ring
groove
S		Diameter
of
raised
facet
F		Bolting details
Pitch
circle
diameter
P		Number
of
holes
N		Diameter
of
holes
V		Fastener
size and
thread*
O
1595一4767414M12
20100一5373414M12
25115一6383414M12
32120一6787414M12
40135一7898414M12
50150一90114418M16
65165一103127418M16
80185一122146418M16
(90)205一141165418M16
100215一154178418M16
125255一186210418M16
150280一211235418M16
200335一268292818M16
250405一328356822M20
300455370378406822M20
350525430438470826M24
4005804854895211226M24
4506405455525841226M24
5007056056096411226M24
(550)7606556636991230M27
6008257157207561230M27
(650)8457407457811630M27
7008707657708061630M27
(750)9458408478832030M27
80010059009049402030M27
(850)10309259299652030M27
90011051000100510412430M27
100011801075108211182430M27
120014151310131713532830M27
14001 7001565157316153236M33
160019101775178318253236M33
180021101970197420193639M36

( ) Non-preferred size.     * For inch series, see Paragraph A5 of Appendix A.    -Non-preferred, see Table d.1.

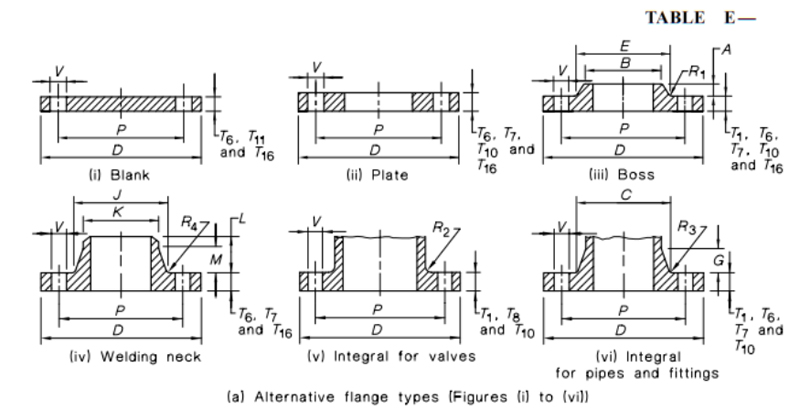

Specifications3 of AS 2129 Flanges for Pipes Valves and Fittings

AS 2129 Flanges For Pipes Valves And Fittings Manufacturer

NOTE: For convenience, only the flat face variant of each type of flange is illustrated.

Nominal
size





DN

Diameter
of flange




D

Outside
diameter
of O-ring
groove


S

Diameter
of raised
face



F

Bolting detailsDimensions of bossDimensions
Pitch
circle

diameter


P

Number
of holes


N

Diameter
of holes



V

Fastener
size and
thread*

O

Length
of boss


A

Minimum
diameter at
small end of
bass
B		Maximum
diameter at
root of boss

E

Maximum
diameter at
large end of
neck

C

Minimum
length of
taper


G

1595一4767414M12103338一一
20100一5373414M12113844一一
25115一6583414M12114852一一
32120一6787414M12115658一一
40135
7898414M12136270一一
50150一90114418M16137579一一
65165一103127418M16169093一一
80185一122146418M161610611210332
(90)205一141165418M1617119130一一
100215一154178418M161913314013532
125255一186210818M1619160171一一
150280一211235818M161918619719236
200335一268292818M162224125425842
250405一328356822M202729831030639
3004553703784061222M2029349360一一
3505254304384701226M24一一一一一
4005804854895211226M24一一一一一
4506405455325841226M24一一一52657
5007056056096411626M24一一一57657
-5507606556376991626M27一一一一一
6008257157207561630M27一一一68571
7009108058098452030M27一一一一一
(750)9958808889272033M30一一一85072
80010609359429842036M33一一一一一
(850)109097097410162036M33一一一一一
90011751045105010922436M33一一一一一
10002551125113311752436M33一一一一一
120014901360136814103236M33一一一一一
140017001565157316153636M33一一一一一
160019101775178018254039M36一一一一一
180021101965197120194442M39一一一一一
200023452195220222504442M39一一一一一
220025602400240624604448M45一一一一一
240027752615261926735248M45一一一一一
280032003030303630905648M45一一一一一
300034303250325433156055M52一一一一一

( ) Non-preferred size.     * For inch series, see Paragraph A5 of Appendix A.    -Non-preferred, see Table d.1.


Specifications4 of AS 2129 Flanges for Pipes Valves and Fittings

AS 2129 Flanges For Pipes Valves And Fittings Supplier

NOTE: For convenience, only the flat face variant of each type of flange is illustrated.

Nominal
size
DN		Diameter
of
Flange
D		Outside
diameter
of
O-ring
groove
S		Diameter
of
raised
face


F

Bolting detailsDimensions of boss

Dimensions of neck

for grey or ductile

iron; integral flange

for pipes and fittings

Pitch

circle

diameter

p		Number
of
holes
N		Diameter
of
holes
V		Fastener
size and
thread*
O		Length
of
bass
A		Minimum
diameter
at small
end of
bass
B		Maximum
diameter
at root
of boss
E		Maximum
diameter
at large
end of
neck
C		Minimum
length
of
taper
G
1595一4767414M12103338一一
20100一5373414M12113844一一
25115一6383414M12114852一一
32120一6787414M12115658一一
40135
7898414M12136270一一
50150一90114418M16137579一一
65165一103127418M16169093一一
80185一122146418M161610611210332
-90205一141165818M1617119130一一
100215一154178818M1619133140一一
125255一186210818M1619160171一一
150280一207235822M201918619118529
200335一264292822M202224124924239
250405一3283561222M202729831030639
3004553703744061226M242934935434941
3505254304384701226M24一一一一一
4005804854895211226M24一一一一一
4506405455525841626M24一一一52754
5002056056096411626M24一一一57755
-5507606556636991630M27一一一一一
6008257107177561633M30一一一68061
7009108008068452033M30一一一一一
-7509958808859272036M33一一一84565
80010609359429842036M33一一一一一
-850109097097410162036M33一一一一一
90011751045105010922436M33一一一一一
100012551 125113011752439M36一一一一一
120014901360136514103239M36一一一一一

( ) Non-preferred size.     * For inch series, see Paragraph A5 of Appendix A.    -Non-preferred, see Table d.1.



Features of AS 2129 Flanges for Pipes Valves and Fittings

KIDY is a service-oriented enterprise with a complete range of steel grades; Conventional steel grades such as F304, F321, F347, and F316L are made of standard materials and are equipped with flange blanks for long-term delivery. The packaging is made in export wooden boxes, and special size requirements can be customized.
