MSS SP43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant

Name: MSS SP43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant
Brand: Wenzhou Kidy Pipeline Materials Co., Ltd.

In pipeline systems, welded pipe fittings are pressure pipeline components used to change the direction or diameter of pipelines, branch pipelines, and achieve special connection functions in production equipment such as petrochemical and power plants. They are fittings connected to pipes through welding, especially suitable for long pipelines and pipelines that do not require frequent disassembly. Due to changes in the flow direction and flow area of the medium at its installation location, its internal and external stress situations are relatively complex. Therefore, the quality level of the pipe fittings directly affects the safe and stable operation of the entire pipeline system. They have multiple product types to choose from, such as 90 ° elbows, 45 ° elbows, tees, tees, caps, concentric reducers, eccentric reducers, and flanged short joints. Welded pipe fittings are mainly suitable for high-pressure pipelines that require high pressure in petrochemical, pharmaceutical and health, power, aerospace, fire protection, metallurgy, shipbuilding, gas, nuclear power, and environmental protection, as well as equipment with precise size requirements and various other high-pressure fields.

Get A Quote >

Specifications of MSS SP43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant

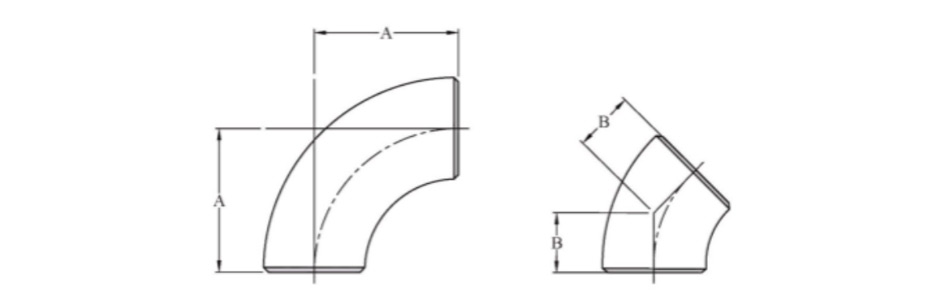

Table 1 Dimensions of Long Radius Elbows

Dimensions of Long Radius Elbows

Dimensions are in inches

NPS	Outside Diameter at Bevel	Center-to-End, H
NPS	Outside Diameter at Bevel	90° Elbows A	45° Elbows B
½	0.84	1.50	0.62
¾	1.05	1.50	0.75
1	1.32	1.50	0.88
1¼	1.66	1.88	.00
1½	1.90	2.25	1.12
2	2.38	3.00	1.38
2½	2.88	3.75	1.75
3	3.50	4.50	2.00
3½	4.00	5.25	2.25
4	4.50	6.00	2.50
5	5.56	7.50	3.12
6	6.62	9.00	3.75
8	8.62	12.00	5.00
10	10.75	15.00	6.25
12	12.75	18.00	7.50
14	14.00	21.00	8.75
16	16.00	24.00	10.00
18	18.00	27.00	11.25
20	20.00	30.00	12.50
22	22.00	33.00	13.50
24	24.00	36.00	15.00

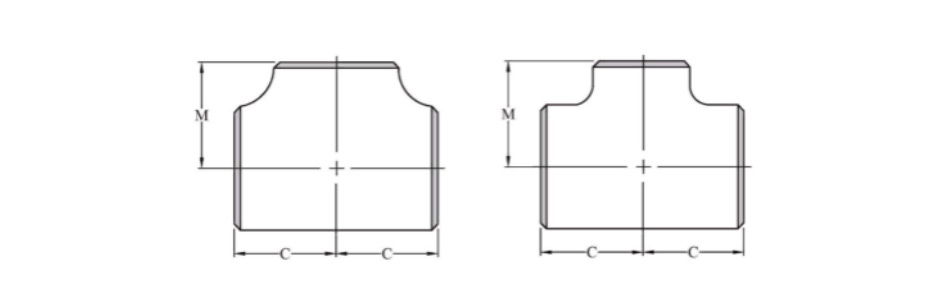

Table 2 Dimensions of Straight and Reducing-on-the-Outlet Tees

Dimensions of Straight and Reducing-on-the-Outlet Tees

Dimensions are in inches

NPS	Nominal Outside Diameter at Bevel		Center-to-End
NPS	Run	Outlet	Run C	Outlet M
1/2 (Straight)	0.84	0.84	1.00	1.00
3/4 (Straight)	1.05	1.05	1.12	1.12
3/4 × 3/4 × 1/2	1.05	0.84	1.12	1.12
1 (Straight)	1.32	1.32	1.50	1.50
1 × 1 × 1/2	1.32	0.84	1.50	1.50
1 × 1 × 3/4	1.32	1.05	1.50	1.50
1¼ (Straight)	1.66	1.66	1.88	1.88
1¼ × 1¼ × 1/2	1.66	0.84	1.88	1.88
1¼ × 1¼ × 3/4	1.66	1.05	1.88	1.88
1¼ × 1¼ × 1	1.66	1.32	1.88	1.88
1½ (Straigh)	1.90	1.90	2.25	2.25
1½ × 1½ × 3/4	1.90	1.05	2.25	2.25
1½ × 1½ × 1	1.90	1.32	2.25	2.25
1½ × 1½ × 1¼	1.90	1.66	2.25	2.25
2 (Straight)	2.38	2.38	2.50	2.50
2 × 2 × 3/4	2.38	1.05	2.50	1.75
2 × 2 × 1	2.38	1.32	2.50	2.00
2 × 2 × 1¼	2.38	1.66	2.50	2.25
2 × 2 × 1½	2.38	1.90	2.50	2.38
2½ (Straight)	2.88	2.88	3.00	3.00
2½ × 2½ × 1	2.88	1.32	3.00	2.25
2½ × 2½ × 1¼	2.88	1.66	3.00	2.50
2½ × 2½ × 1½	2.88	1.90	3.00	2.62
2½ × 2½ × 2	2.88	2.38	3.00	2.75
3 (Straight)	3.50	3.50	3.38	3.38
3 × 3 × 1½	3.50	1.90	3.38	2.88
3 × 3 × 2	3.50	2.38	3.38	3.00
3 × 3 × 2½	3.50	2.88	3.38	3.25

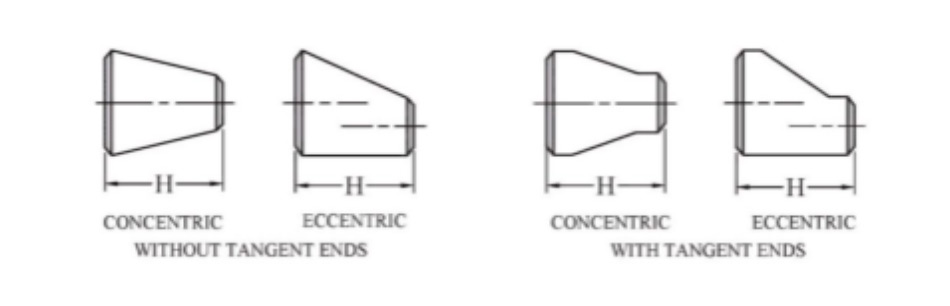

Table 3 Dimensions of Concentric and Eccentric Reducers

Dimensions of Concentric and Eccentric Reducers

Dimensions are in inches

NPS	Outside Diameter at Bevel		Length H	NPS	Outside Diameter at Bevel		Length H
NPS	Large End	Small End	Length H	NPS	Large End	Small End	Length H
3/4 × 12	1.05	0.84	1.50	6 × 2½	6.62	2.88	5.50
1 × 3/8	1.32	0.68	2.00	6 × 3	6.62	3.50	5.50
1 × 12	1.32	0.84	2.00	6 × 3½	6.62	4.00	5.50
1 × 3/4	1.32	1.05	2.00	6 × 4	6.62	4.50	5.50
1¼ × 1/2	1.66	0.84	2.00	6 × 5	6.62	5.56	5.50
1¼ × 3/4	1.66	1.05	2.00	8 × 3½	8.62	4.00	6.00
1¼ × 1	1.66	1.32	2.00	8 × 4	8.62	4.50	6.00
1½ × 1/2	1.90	0.84	2.50	8 × 5	8.62	5.56	6.00
1½ × 3/4	1.90	1.05	2.50	8 × 6	8.62	6.62	6.00
1½ × 1	1.90	1.32	2.50	10 × 4	10.75	4.50	7.00
1½ × 1¼	1.90	1.66	2.50	10 × 5	10.75	5.56	7.00
2 × 3/4	2.38	1.05	3.00	10 × 6	10.75	6.62	7.00
2 × 1	2.38	1.32	3.00	10 × 8	10.75	8.62	7.00
2 × 1¼	2.38	1.66	3.00	12 × 5	12.75	5.56	8.00
2 × 1½	2.38	1.90	3.00	12 × 6	12.75	6.62	8.00
2½ × 1	2.88	1.32	3.50	12 × 8	12.75	8.62	8.00
2½ × 1¼	2.88	1.66	3.50	12 × 10	12.75	10.75	8.00
2½ × 1½	2.88	1.90	3.50	14 × 6	14.00	6.62	13.00
2½ × 2	2.88	2.38	3.50	14 × 8	14.00	8.62	13.00
3 × 1¼	3.50	1.66	3.50	14 × 10	14.00	10.75	13.00
3 × 1½	3.50	1.90	3.50	14 × 12	14.00	12.75	13.00
3 × 2	3.50	2.38	3.50	16 × 8	16.00	8.62	14.00
3 × 2½	3.50	2.88	3.50	16 × 10	16.00	10.75	14.00
3½ × 1¼	4.00	1.66	4.00	16 × 12	16.00	12.75	14.00
3½ × 1½	4.00	1.90	4.00	16 × 14	16.00	14.00	14.00
3½ × 2	4.00	2.38	4.00	18 × 10	18.00	10.75	15.00
3½ × 2½	4.00	2.88	4.00	18 × 12	18.00	12.75	15.00
3½ × 3	4.00	3.50	4.00	18 × 14	18.00	14.00	15.00
4 × 1½	4.50	1.90	4.00	18 × 16	18.00	16.00	15.00
4 × 2	4.50	2.38	4.00	20 × 12	20.00	12.75	20.00
4 × 2½	4.50	2.88	4.00	20 × 14	20.00	14.00	20.00
4 × 3	4.50	3.50	4.00	20 × 16	20.00	16.00	20.00
4 × 3½	4.50	4.00	4.00	20 × 18	20.00	18.00	20.00
5 × 2	5.56	2.38	5.00	24 × 16	20.00	16.00	20.00
5 × 2½	5.56	2.88	5.00	24 × 18	20.00	18.00	20.00
5 × 3	5.56	3.50	5.00	24 × 20	20.00	20.00	20.00
5 × 3½	5.56	4.00	5.00
5 × 4	5.56	4.50	5.00

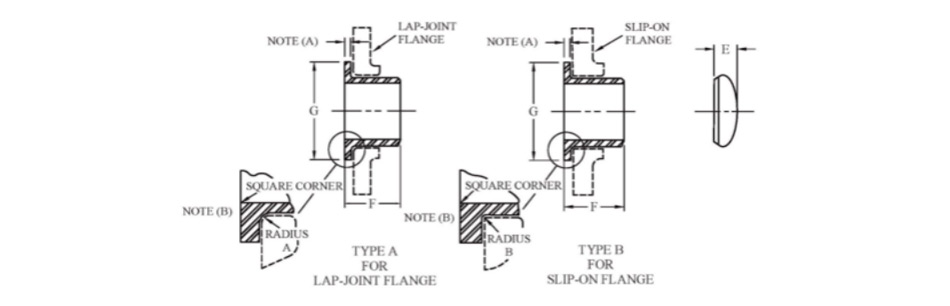

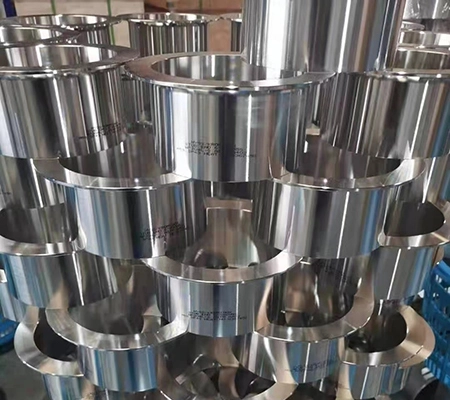

Table 4 Dimensions of Lap-Joint Stub Ends and Caps

Dimensions of Lap-Joint Stub Ends and Caps

Dimensions are in inches

NPS	Nominal O.D. at Bevel	Caps Length E	Lap-Joint-Stub-Ends(c)
			Length F	Diameter of Lap G (max.)	Radius of Fillet
			Length F	Diameter of Lap G (max.)	A	B (max.)
1/2	0.84	1.00	2.00	1.38	0.12	0.03
3/4	1.05	1.00	2.00	1.69	0.12	0.03
1	1.32	1.50	2.00	2.00	0.12	0.03
1¼	1.66	1.50	2.00	2.50	0.19	0.03
1½	1.90	1.50	2.00	2.88	0.25	0.03
2	2.38	1.50	2.50	3.62	0.31	0.03
2½	2.88	1.50	2.50	4.12	0.31	0.03
3	3.50	2.00	2.50	5.00	0.38	0.03
3½	4.00	2.50	3.00	5.50	0.38	0.03
4	4.50	2.50	3.00	6.19	0.44	0.03
5	5.56	3.00	3.00	7.31	0.44	0.06
6	6.62	3.50	3.50	8.50	0.50	0.06
8	8.62	4.00	4.00	10.62	0.50	0.06
10	10.75	5.00	5.00	12.75	0.50	0.06
12	12.75	6.00	6.00	15.00	0.50	0.06
14	14.00	6.50	6.00	16.25	0.50	0.06
16	16.00	7.00	6.00	18.50	0.50	0.06
18	18.00	8.00	6.00	21.00	0.50	0.06
20	20.00	9.00	6.00	23.00	0.50	0.06
24	24.00	10.50	6.00	27.25	0.50	0.06

NOTES:

(a) Minimum lap thickness shall not be less than nominal wall thickness.

(b) Contact faces of stub ends shall have a modified spiral or Concentric section.

Features of MSS SP43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant

KIDY is a service-oriented enterprise that provides fittings for changing the direction of pipelines in pipeline systems. Butt welded elbows are made by welding two steel plates. Generally, large-diameter elbows are butt welded, so in industrial applications, elbows with a diameter of 600 or above are mostly butt welded. 90 ° butt welded elbows can be divided into long radius (LR) elbows and short radius (SR) elbows based on the bending radius. Other commonly used elbows in fluid pipeline engineering construction include 45 ° elbows and 180 ° elbows. Our company can also customize other non-standard elbows according to engineering needs.
