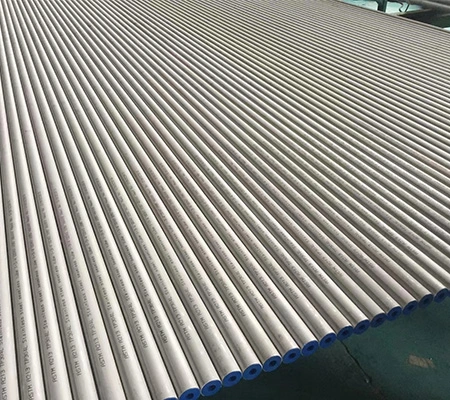

ASTM A213-213M Cold Worked Austenitic Seemless Stainless Steel Pipes

Name: ASTM A213-213M Cold Worked Austenitic Seemless Stainless Steel Pipes
Brand: Wenzhou Kidy Pipeline Materials Co., Ltd.

The seamless tubes of austenitic stainless steel boilers, heat exchangers, and condensers are processed by cold drawing or cold rolling, with specifications ranging from 6-228mm and wall thickness ranging from 0.6-30mm. The surface is pickled; Suitable for boilers, heat exchangers, condensers, finned equipment pipelines, such as boilers, chemical industry, refining, food equipment, and other fields.

Get A Quote >

Specifications1 of Kidy ASTM A213-213M Cold Worked Austenitic Seemless Stainless Steel Pipes

Grade	UNS -Designation	Carbon	Manga- nese	Phos- phorus	Sulfur	Silicon	Chrom- ium	Nickel	Molyb- denum	Nitrogen	Niobium	Titanium	Other
TP201	S20100	0.15	5.5-7.5	0.060	0.030	1.00	16.0-18.0	3.5-5.5		0.25
TP202	S20200	0.15	7.5-10.0	0.060	0.030	1.00	17.0-19.0	4.0-6.0		0.25
XM-19	S20910	0.06	4.0- 6.0	0.045	0.030	1.00	20.5- -23.5	11.5-13.5	1.50-3.00	0.25-0.40	0.10-0.30		V 0.10-0.30
	S21500	0.06-0.15	5.5-7.0	0.045	0.030	0.20-1.00	14.0-16.0	9.0-11.0	0.80-1.20		0.75-1.25	9.0-11.0	B 0.003-0.009
	S25700	0.02	2.00	0.025	0.010	6.5-8.0	8.0-11.5	22.0-25.0	0.50				V 0.15-0.40
TP304	S30400	0.08	2.00	0.045	0.030	1.00	18.0-20.0	8.0-11.0
TP304L	S30403	0.035°	2.00	0.045	0.030	1.00	18.0-20.0	8.0-12.0
TP304H	S30409	0.04-0.10	2.00	0.045	0.030	1.00	18.0-20.0	8.0-11.0
	S30432	0.07-0.13	1.00	0.040	0.010	0.30	17.0-19.0	7.5-10.5					A 0.003-0.300
	S30434	0.07-0.14	2.00	0.040	0.010	1.00	17.5-19.5	9.0-12.0			0.10-0.40	0.10-0.25	B 0.001-0.010
TP304N	S30451	0.08	2.00	0.045	0.030	1.00	18.0-20.0	8.0-11.0		0.10-0.16
TP304LN	S30453	0.035°	2.00	0.045	0.030	1.00	18.0-20.0	8.0-11.0		0.10-0.16
	S30615	0.016-0.24	2.00	0.030	0.030	3.2-4.0	17.0-19.5	13.5-16.0
	S30815	0.05-0.10	0.80	0.040	0.030	1.40-2.00	20.0-22.0	10.0-12.0		0.14-0.20
TP309S	S30908	0.08	2.00	0.045	0.030	1.00	22.0-24.0	12.0-15.0
TP309H	S30909	0.04-0.10	2.00	0.045	0.030	1.00	22.0-24.0	12.0-15.0
TP309LMoN	S30925	0.025	2.00	0.040	0.030	0.7	23.0-26.0	12.0-15.0	0.5-0.12	0.25-0.40
TP309Cb	S30940	0.08	2.00	0.045	0.030	1.00	22.0-24.0	13.0-16.0			10*C-1.10
TP309HCb	S30941	0.04 -0.10	2.00	0.045	0.030	1.00	22.0-24.0	12.0-16.0		0.10-0.20	10*C-1.10
	S30942	0.03-0.10	2.00	0.040	0.030	1.00	21.0-23.0	14.5-16.5			0.50-0.80
	S31002	0.02	2.00	0.020	0.015	0.15	24.0-26.0	19.0-22.0	0.10	0.10
TP310S	S31008	0.08	2.00	0.045	0.030	1.00	24.0-26.0	19.0-22.0		0.10-0.25
TP310H	S31009	0.04-0.10	2.00	0.045	0.030	1.00	24.0-26.0	19.0-22.0		0.15-0.30
TP310MoCbN	S31025	0.10	1.50	0.030	0.030	1.00	19.5-23.0	23.0-26.0	1.0-2.0	0.10-0.25			B 0.002-0.010
	S31035	0.04-0.10	0.60	0.030	0.015	0.40	21.5-23.5	23.5-26.5		0.15-0.30	0.10-0.40	0.20	w2.0-4.0
TP310Cb	S31040	0.08	2.00	0.045	0.030	1.00	24.0-26.0	19.0-22.0			10*C-1.10
TP310HCb	S31041	0.04-0.10	2.00	0.045	0.030	1.00	24.0-26.0	19.0-22.0
TP310HCbN	S31042	0.04-0.10	2.00	0.045	0.030	1.00	24.0-26.0	19.0-21.0	2.00-3.00	0.10-0.16
	S31050	0.025	2.00	0.020	0.030	0.40	24.0-26.0	21.0-23.0	2.00-3.00	0.10-0.16
TP310MoLN	S31060	0.05-0.10	1.00	0.040	0.030	0.50	22.0-24.0	10.0-12.5		0.18-0.25
	S31254	0.020	1.00	0.030	0.010	0.80	19.5-20.5	17.5-18.5	6.0-6.5	0.18-0.22
	S31272	0.08-0.12	1.50-2.00	0.030	0.015	0.30- 0.70	14.0-16.0	14.0-16.0	1.00-1.40			0.30-0.60
	S31277	0.020	3.00	0.030	0.010	0.50	20.5-23.0	26.0-28.0	6.5-8.0	0.30-0.40
TP316	S31600	0.08	2.00	0.045	0.030	1.00	16.0-18.0	10.0-14.0	2.00-3.00

Specifications2 of Kidy ASTM A213-213M Cold Worked Austenitic Seemless Stainless Steel Pipes

Grade	UNS -Designation	Carbon	Manga- nese	Phos- phorus	Sulfur	Silicon	Chrom- ium	Nickel	Molybdenum	Nitrogen	Niobium	Titanium	Other
TP316L	S31603	0.035	2.00	0.045	0.030	1.00	16.0-18.0	10.0-14.0	2.00-3.00
TP316H	S31609	0.04-0.10	2.00	0.045	0.030	1.00	16.0-18.0	11.0-14.0	2.00-3.00
TP31 6Ti	S31635	0.08	2.00	0.045	0.030	0.75	16.0-18.0	10.0-14.0	2.00-3.00	0.10		5X (C+N)-7.0
TP316N	S31651	0.08	2.00	0.045	0.030	1.00	16.0-18.0	10.0-13.0	2.00-3.00	0.10-0.16
TP316LN	S31653	0.035	2.00	0.045	0.030	1.00	16.0-18.0	10.0-13.0	2.00-3.00	0.10-0.16
TP317	S31700	0.03	2.00	0.045	0.030	1.00	18.0-20.0	11.0-15.0	3.0-4.0
TP317L	S31703	0.035	2.00	0.045	0.030	1.00	18.0-20.0	11.0-15.0	3.0-4.0
TP317LM	S31725	0.03	2.00	0.045	0.030	1.00	18.0-20.0	13.5-17.5	4.0-5.0	0.20			Cu 0.75
TP317L LMN	S31726	0.03	2.00	0.045	0.030	1.00	17.0-20.0	13.5-17.5	4.0-5.0	0.10-0.20			Cu 0.75
C	S32050	0.030	1.50	0.035	0.020	1.00	22.0-24.0	20.0-23.0	6.0-6.8	0.21-0.32			Cu 0.40
TP321	S32100	0.08	2.00	0.045	0.030	1.00	17.0-19.0	9.0-12.0				5X (C+N)-7.0
TP321H	S32109	0.04-0.10	2.00	0.045	0.030	1.00	17.0-19.0	9.0-12.0				4X (C+N)-7.0
	S32615	0.07	2.00	0.045	0.030	4.8-6.0	16.5-19.5	19.0- 22.0	0.30-1.50			Cu 1.50-2.50
	S33228	0.04-0.08	1.00	0.020	0.015	0.30	26.0-28.0	31.0-33.0			0.60-1.00	Ce 0.05-0.10
	S34565	0.030	5.0-7.0	0.030	0.010	1.00	23.0-25.0	16.0-18.0	4.0-5.0	0.40-0.60	0.1
TP347	S34700	0.08	2.00	0.045	0.030	1.00	17.0-20.0	9.0-13.0
TP347W	S34705	0.05	2.00	0.040	0.030	1.00	17.0-20.0	8.00-11.0			0.10-0.25	0.20-0.50
TP347H	S34709	0.04-0.10	2.00	0.045	0.030	1.00	17.0-19.0	9.0-13.0			8xC-1.10		V0.20-0.50
TP347HFG	S34710	0.06-0.10	2.00	0.045	0.030	1.00	17.0-19.0	9.0-13.0			8xC-1.10		W 1.50-2.60
TP347L N	S34751	0.005-0.020	2.00	0.045	0.030	1.00	17.0-19.0	9.0-12.0		0.06-0.10	0.20-0.50
TP348	S34800	0.08	2.00	0.045	0.030	1.00	17.0-19.0	9.0-13.0					Co 0.20, Ta0.10
TP348H	S34809	0.04-0.10	2.00	0.045	0.030	1.00	17.0-19.0	9.0-13.0					Co 0.20, Ta0.10
	S35045	0.04-0.10	1.50	0.045	0.015	1.00	25.0- 29.0	32.0-37.0				0.15-0.60
XM-15	S38100	0.08	2.00	0.030	0.030	1.50	17.0-19.0	17.5-18.5					Cu 0.75
	S38815	0.030	2.00	0.040	0.020	5.5-6.5	13.0-15.0	15.0-17.0					Cu0.75-1.50
	N08925	0.020	1.00	0.045	0.030	0.50	19.0-21.0	24.0-26.0	6.0-7.0	0.10-0.20			Cu 0.80-1.50
	N08926	0.020	2.00	0.030	0.010	0.50	19.0-21.0	24.0-26.0	6.0-7.0	0.10-0.20			Cu 0.50-1.50
TP444	S44400	0.03	1.00	0.040	0.030	1.00	17.5-19.5		1.75-2.50	0.035

A. New designation established in accordance with Practice E527 and SAE J1086.

B. Maximun, unless otherwise indicated. Where eliyses appear in this table, there is no requiement and analysis for the element ned not be demined or reported.

C. The method of analysis for nitrogen shall be a matter of agreement between the purchaser and manufacturer.

D. For small diameter or thin walls or both, where mary drawing pa ses are required, a carbon maximum of 0.040% is necessay in gades TP304L andTP316. Small outside diameter tubes are defined as those less than 0.5000 in.[12.7 mm) in outside diameter and light wall tubes as those less than 0o49 in. [1.20 mm) in average wall thickness (0.044 in 1.10mm) in mininum wal thickness.

E. For welded TP316, TP316N, TP316LN, and TP316H pipe, the nickel range shall be 10.0-14.0 %.

F. For welded pipe, the phosphorus maximum shall be 0.045%.

G. Ti5×(C+N) min, 0.70 max.

H. Ti4×(C+N) min, 0.60 max.

I. The columbium content shall be not less than ten times the carbon content and not more than 1.00 %.

J. The columbium content shall be not less than eight times the carbon content and not more than 1.0 %.

K. Grade S34751 shall have a columbium (niobium) content of not less than 15 times the carbon content.

L. Iron shall be determined arithmetically by difference of 100 minus the sum of the other specified elements.

M. (Al+ Ti) 0.85-1.20.

N. Columbium (Nb)+ Tantalum =8 x Carbon min,1.00 max.

Advantages of Kidy ASTM A213-213M Cold Worked Austenitic Seemless Stainless Steel Pipes

KIDY is a service-oriented enterprise, with conventional steel grades such as TP304/TP304L, TP321, TP316/TP316L, etc. It has long-term supply of raw materials and semi-finished heat exchanger tubes, and can produce specifications and pressures according to customer needs; The length can reach 24 meters and can be cut according to customer length requirements;

Features of ASTM A213-213M Cold Worked Austenitic Seemless Stainless Steel Pipes

Austenitic stainless steel pipe refers to stainless steel with austenitic structure at high temperature and room temperature. When the steel contains about 18% Cr, 8%~10% Ni, and about 0.1% C, it has a stable austenite structure.

Austenitic chromium nickel stainless steel includes the famous 18Cr-8Ni steel and the high Cr Ni series steel developed by increasing Cr and Ni content and adding elements such as Mo, Cu, Si, Nb, Ti, etc. on this basis. Austenitic stainless steel is non-magnetic and has high toughness and plasticity, but its strength is low. It is not possible to strengthen it through phase transformation, and can only be strengthened through cold working. For example, adding elements such as S, Ca, Se, Te, etc., will result in good machinability.
