Stainless Steel Flanges SABS 1123/SANS 1123 Flanges

Name: Stainless Steel Flanges SABS 1123/SANS 1123 Flanges
Brand: Wenzhou Kidy Pipeline Materials Co., Ltd.

Stainless steel flange S A. The flange of B.S 1123/S.A.N.S 1123 adopts forging process, with specifications of DN10-DN600; Nominal pressure 600kpa -4000kpa; Suitable for liquid, particle, and gas transportation pipelines, such as chemical, refining, boilers, electricity, food, and other fields.

Get A Quote >

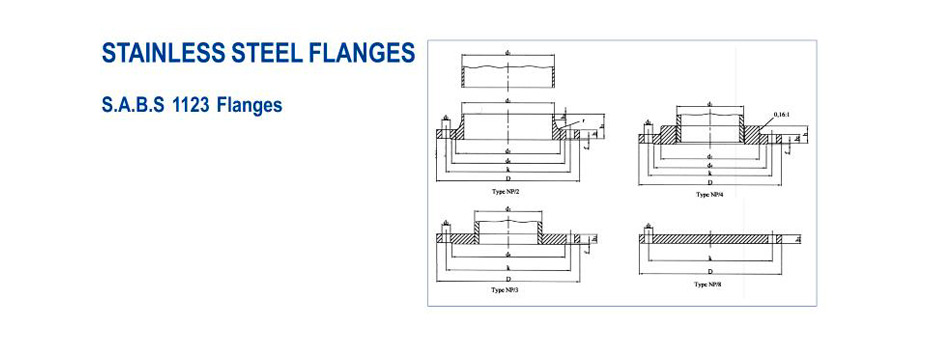

Specifications of Stainless Steel Flanges SABS 1123/SANS 1123 Flanges

Nominal pressure 600 kPa											600/2= Table 4 600/3= Table 5				600/4= Table 6 600/8= Table 8
Nom. Size	Pipe O.D d¹	Flange							Raised face		Bolting	Drilling			Neck			Boss
Nom. Size	Pipe O.D d¹	D	b	b¹	b₂	b₃	h	h¹	d⁴	f	Bolting	No.	d₂	k	d³	h₂	r	d⁵
10	17.2	75	8	10	8	10	16	28	35	2	M10	4	11	50	26	6	4	25
15	21.3	80	8	10	8	10	16	30	40	2	M10	4	11	55	30	6	4	30
20	26.9	90	8	10	8	10	18	32	50	2	M10	4	11	65	38	6	4	40
25	33.7	100	8	10	8	10	18	35	60	2	M10	4	11	75	42	6	4	50
32	42.4	120	8	10	8	10	20	35	70	2	M12	4	14	90	55	6	6	60
40	48.3	130	8	10	8	10	20	38	80	3	M12	4	14	100	62	7	6	70
50	60.3	140	8	10	8	10	22	38	90	3	M12	4	14	110	74	8	6	80
65	76.1	160	8	10	8	10	26	38	110	3	M12	4	14	130	88	9	6	100
80	88.9	190	10	10	10	10	28	42	128	3	M16	4	18	150	102	10	8	110
100	114.3	210	10	10	10	10	34	45	148	3	M16	4	18	170	130	10	8	130
*125	139.7	240	13	12	13	12	39	48	178	3	M16	8	18	200	155	10	8	160
150	168.3	265	13	12	13	12	39	48	202	3	M16	8	18	225	184	12	10	185
*175	193.7	295	13	14	-	14	-	52	230	3	M16	8	18	255	210	12	10	-
200	219.1	320	13	14	-	14	-	55	258	3	M16	8	18	280	236	15	10	-
*225	244.5	345	16	16	-	16	-	58	285	3	M16	8	18	305	264	15	12	-
250	273.0	375	16	16	-	16	-	60	312	3	M16	12	18	335	290	15	12	-
300	323.9	440	20	20	-	20	-	62	365	4	M20	12	22	395	342	15	12	-
350	355.6	490	22	22	-	22	-	62	415	4	M20	12	22	445	385	15	12	-
400	406.4	540	22	22	-	22	-	65	465	4	M20	16	22	495	438	15	12	-
450	457.2	595	24	25	-	25	-	65	520	4	M20	16	22	550	492	15	12	-
500	508.0	645	24	25	-	25	-	68	570	4	M20	20	22	600	538	15	12	-
550	559.0	705	24	28	-	28	-	68	620	5	M24	20	26	655	590	16	12	-
600	609.6	755	24	30	-	30	-	70	670	5	M24	20	26	705	640	16	12	-

Nom. Size	Pipe O.D d¹	Flange							Raised face		Bolting	Drilling			Neck			Boss
Nom. Size	Pipe O.D d¹	D	b	b¹	b₂	b₃	h	h¹	d⁴	f	Bolting	No.	d₂	k	d³	h₂	r	d⁵
10	17.2	90	8	10	8	10	14	35	40	2	M12	4	14	60	28	6	4	30
15	21.3	95	8	10	8	10	14	35	45	2	M12	4	14	65	32	6	4	35
20	26.9	105	8	10	8	10	16	38	58	2	M12	4	14	75	40	6	4	45
25	33.7	115	8	10	8	10	16	38	68	2	M12	4	14	85	46	6	4	52
32	42.4	140	10	10	10	10	20	40	78	2	M16	4	18	100	56	6	6	60
40	48.3	150	10	10	10	10	20	42	88	3	M16	4	18	110	64	7	6	70
50	60.3	165	12	10	10	12	20	45	102	3	M16	4	18	125	75	8	6	85
65	76.1	185	12	12	12	12	26	45	122	3	M16	4	18	145	90	10	6	105
80	88.9	200	14	12	12	14	26	50	138	3	M16	8	18	160	105	10	8	118
100	114.3	220	14	12	12	14	32	52	158	3	M16	8	18	180	131	12	8	140
125 150 175	139.7 168.3 193.7	250 285 315	16 18 18	14 16 16	14 16 -	16 18 18	36 38 -	55 55 60	188 212 242	3 3 3	M16 M20 M20	8 8 8	18 22 22	210 240 270	156 184 210	12 12 12	8 10 10	168 195 -
200	219.1	340	18	18	-	18	-	62	268	3	M20	8	22	295	235	16	10	-
*225	244.5	370	18	18	-	18	-	62	290	3	M20	8	22	325	265	16	10	-
250	273.0	395	20	20	-	20	-	68	320	3	M20	12	22	350	292	16	12	-
300	323.9	445	22	22	-	22	-	68	370	4	M20	12	22	400	344	16	12	-
350	355.6	505	26	25	-	25	-	68	430	4	M20	16	22	460	385	16	12	-
400	406.4	565	26	25	-	25	-	72	482	4	M24	16	26	515	400	16	12	-
450	457.2	615	28	30	-	30	-	72	532	4	M24	20	26	565	492	16	12	-
500	508.0	670	28	32	-	32	-	75	585	4	M24	20	26	620	542	16	12	-
550	559.0	730	28	35	-	35	-	80	635	5	M24	20	26	675	592	18	12	-
600	609.6	780	28	38	-	38	-	80	685	5	M24	20	26	725	642	18	12	-

Features of Stainless Steel Flanges SABS 1123/SANS 1123 Flanges

KIDY is a service-oriented enterprise with a complete range of steel grades; Regular materials and other specifications are available for long-term delivery of flange blanks. The packaging is made in export wooden boxes, and special size requirements can be customized.
