MSS SP79 Socket-Welding Reducer Inserts

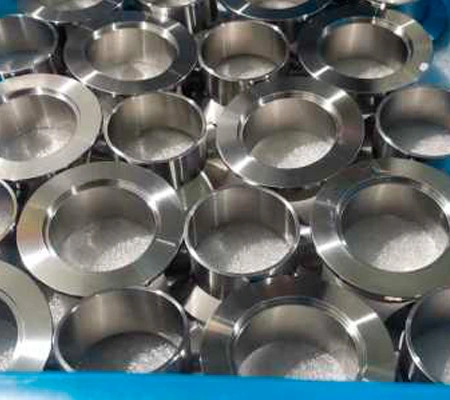

MSS SP79 socket welded reducer fittings, belonging to socket short joints, 1/4 "-4" reducer joints.

Specifications of MSS SP79 Socket-Welding Reducer Inserts

Socket-Welding Reducer Insert Dimensions and Tolerances

Socket-Welding Reducer Insert Dimensions and Tolerances

Dimensions in inches

NPS	Type		Socket		Shank Dia. SD	Laying Length A		Bore D		Wall (Min.) C		Length
	Type		Dia. B	Depth (Min.) K		Laying Length A		Bore D		Wall (Min.) C		SL		RL (Min.)
	3M	6M	Dia. B	Depth (Min.) K		3M	6M	3M	6M	3M	6M	3M	6M	3M	6M
1/4 × 1/8	1	1	0.430	0.38	0.540	0.75	0.81	0.269	0.157	0.125	0.156	0.56	0.62	-	-

3/8 × 1/4	1	1	0.565	0.38	0.675	0.75	0.84	0.364	0.250	0.149	0.181	0.56	0.62	-	-
3/8 × 1/8	1	1	0.430	0.38	0.675	0.75	0.84	0.269	0.157	0.125	0.156	0.56	0.62	-	-

1/2 × 3/8	1	1	0.700	0.38	0.840	0.81	0.91	0.493	0.359	0.158	0.198	0.62	0.62	-	-
1/2 × 1/4	1	1	0.565	0.38	0.840	0.81	0.81	0.364	0.250	0.149	0.181	0.62	0.62	-	-
1/2 × 1/8	1	1	0.430	0.38	0.840	0.81	0.81	0.269	0.157	0.125	0.156	0.62	0.62	-	-

3/4 × 1/2	1	1	0.865	0.38	1.050	0.88	1.00	0.622	0.464	0.184	0.235	0.69	0.75	-	-
3/4 × 3/8	2	1	0.700	0.38	1.050	0.62	0.88	0.493	0.359	0.158	0.198	-	0.75	1.06	-
3/4 × 1/4	2	2	0.565	0.38	1.050	0.69	0.88	0.364	0.250	0.149	0.181	-	-	1.06	1.26
3/4 × 1/8	2	2	0.430	0.38	1.050	0.69	0.88	0.269	0.157	0.125	0.156	-	-	1.06	1.26

1 × 3/4	1	1	1.075	0.50	1.315	0.94	1.12	0.824	0.612	0.193	0.274	0.75	0.81	-	-
1 × 1/2	2	1	0.865	0.38	1.315	0.62	1.12	0.622	0.464	0.184	0.235	-	0.81	1.12	-
1 × 3/8	2	2	0.700	0.38	1.315	0.69	0.88	0.493	0.359	0.158	0.198	-	-	1.12	1.31
1 × 1/4	2	2	0.565	0.38	1.315	0.75	0.94	0.364	0.250	0.149	0.181	-	-	1.12	1.31
1 × 1/8	2	2	0.430	0.38	1.315	0.75	0.94	0.269	0.157	0.125	0.156	-	-	1.12	1.31

1¼ × 1	1	1	1.340	0.50	1.660	1.00	1.19	1.049	0.815	0.224	0.312	0.81	0.88	-	-
1¼ × 3/4	2	2	1.075	0.50	1.660	0.69	0.81	0.824	0.612	0.193	0.274	-	-	1.25	1.37
1¼ × 1/2	2	2	0.865	0.38	1.660	0.75	0.88	0.622	0.464	0.184	0.235	-	-	1.25	1.37
1¼ × 3/8	2	2	0.700	0.38	1.660	0.81	0.94	0.493	0.359	0.158	0.198	-	-	1.25	1.37
1¼ × 1/4	2	2	0.565	0.38	1.660	0.88	1.00	0.364	0.250	0.149	0.181	-	-	1.25	1.37
1¼ × 1/8	2	2	0.430	0.38	1.660	0.88	1.00	0.269	0.157	0.125	0.156	-	-	1.25	1.37
