GOST 17375/GOST 17376/GOST 17378/GOST 17379 Factory-Made wrought Buttwelding Fittings

Name: GOST 17375/GOST 17376/GOST 17378/GOST 17379 Factory-Made wrought Buttwelding Fittings
Brand: Wenzhou Kidy Pipeline Materials Co., Ltd.

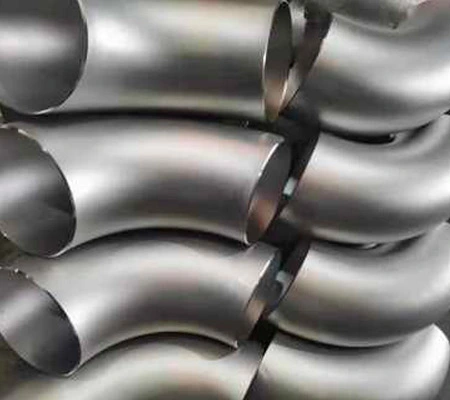

In pipeline systems, welded pipe fittings are pressure pipeline components used to change the direction or diameter of pipelines, branch pipelines, and achieve special connection functions in production equipment such as petrochemical and power plants. They are fittings connected to pipes through welding, especially suitable for long pipelines and pipelines that do not require frequent disassembly. Due to changes in the flow direction and flow area of the medium at its installation location, its internal and external stress situations are relatively complex. Therefore, the quality level of the pipe fittings directly affects the safe and stable operation of the entire pipeline system. They have multiple product types to choose from, such as 90 ° elbows, 45 ° elbows, tees, tees, caps, concentric reducers, eccentric reducers, and flanged short joints. The product standards GOST 17375, GOST 17376, GOST 17378, and GOST 17379 are mainly applicable to high-pressure pipelines, equipment with precise dimensions, and various other high-pressure fields that require high pressure resistance, such as petrochemicals, medicine and health, electricity, aerospace, fire protection, metallurgy, shipbuilding, gas, nuclear power, and environmental protection.

Get A Quote >

Specifications of GOST 17375/GOST 17376/GOST 17378/GOST 17379 Factory-Made wrought Buttwelding Fittings

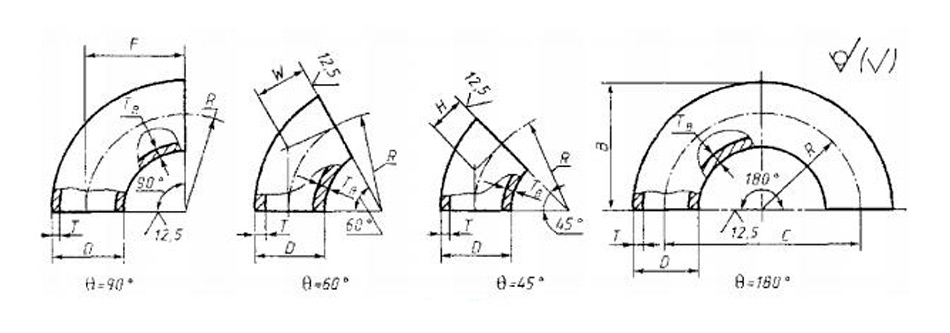

DN	D	T	F=R	H	C	B
DN	D	T	F=R	H	C	B	45°	90°	180°
15	21.3	2.0 3.2 4.0	28	14	56	38	0.02 0.03 0.04	0.04 0.06 0.07	0.08 0.12 0.14
20	26.9	2.0 3.2 4.0	29	14	58	43	0.03 0.04 0.06	0.06 0.08 0.10	0.11 0.17 0.20
25	33.7	2.3 3.2 4.5	38	18	76	56	0.05 0.08 0.09	0.11 0.16 0.19	0.21 0.32 0.38
32	42.4	2.6 3.6 5.0	48	23	96	69	0.10 0.13 0.17	0.19 0.26 0.35	0.39 0.52 0.60
40	48.3	2.6 3.6 5.0	57	29	114	82	0.13 0.18 0.24	0.26 0.36 0.47	0.53 0.72 0.95
50	60.3	2.9 4.0 5.6	76	35	152	106	0.25 0.33 0.50	0.50 0.67 0.89	0.99 1.30 1.80
65	76.1	2.9 5.0 7.1	95	44	190	133	0.40 0.72 0.90	0.79 1.50 1.80	1.60 2.90 3.60
80	88.9	3.2 5.6 8.0	114	51	228	159	0.60 1.00 1.40	1.20 2.10 2.80	2.40 4.10 5.70
100	114.3	3.6 6.3 8.8	152	64	304	210	1.20 2.00 2.80	2.40 4.00 5.40	4.70 8.00 11.00
125	139.7	4.0 7.1 11.0	190	79	380	260	2.00 3.10 4.80	4.00 6.20 9.60	8.00 12.00 19.00
150	168.3	4.5 7.1 11.0	229	95	457	313	3.20 5.10 7.70	6.50 10.00 15.00	13.00 20.00 31.00
200	219.1	6.3 8.0 12.5	305	127	610	414	8.00 9.90 14.00	16.00 20.00 31.00	32.00 40.00 61.00
250	273.0	6.3 10.0	381	159	762	518	12.00 19.00	25.00 39.00	50.00 78.00
300	323.9	7.1 10.0	457	190	914	619	20.00 28.00	40.00 56.00	80.00 111.00
350	355.6	8.0 11.0	533	222	1066	711	24.00 39.00	57.00 78.00	114.00 156.00
400	406.4	8.8 12.5	610	254	1220	813	41.00 58.00	82.00 117.00	165.00 234.00
450	457.0	10.0	686	286	1372	914	59.00	119.00	237.00
500	508.0	11.0	762	318	1524	1016	81.00	162.00	323.00
600	610.0	12.5	914	381	1828	1219	133.00	266.00	531.00
700	711.0	-	1067	444	2134	1422	-	-	-
800	813.0	-	1219	507	2238	-	-	-	-
900	914.0	-	1372	570	2744	-	-	-	-
1000	1016.0	-	1524	634	3048	-	-	-	-

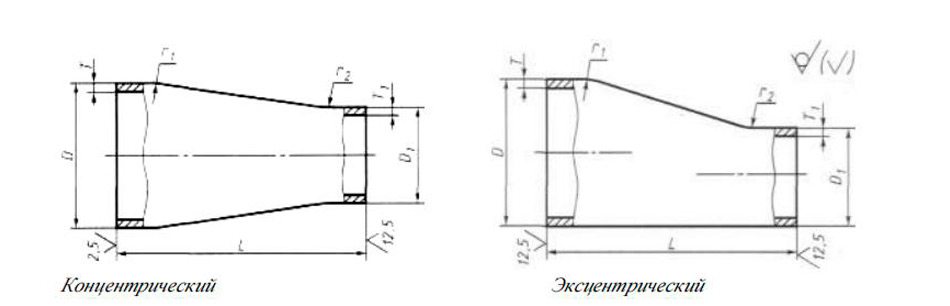

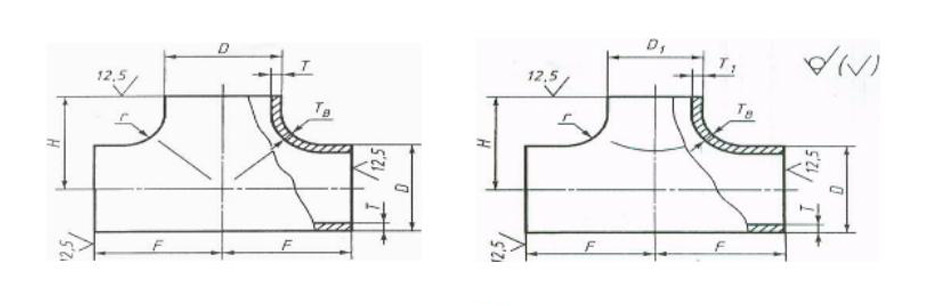

DN	D	T	D¹	T¹	F	H	Macca, kr
15	21.3	2.0	12.3	2.0	25	25	0.19
		3.2		3.2			0.30
		4.0		4.0			0.38
20	26.9	2.0		2.0	29	29	0.26
		3.2		3.2			0.42
		4.0		4.0			0.52
		2.0	26.9	2.0			0.23
		3.2		3.2			0.37
		4.0		4.0			0.46
25	33.7	2.3	21.3	2.0	38	38	0.25
		3.2		3.2			0.35
		4.5		4.0			0.40
		2.3	26.9	2.0			0.25
		3.2		3.2			0.35
		4.5		4.0			0.40
		2.3	33.7	2.3			0.40
		3.2		3.2			0.64
		4.5		4.5			0.80
32	42.4	2.6	21.3	2.0	48	48	0.79
		3.6		3.2			1.10
		5.0		4.0			1.50
		2.6	26.9	2.0			0.79
		3.6		3.2			1.10
		5.0		4.0			1.50
		2.6	33.7	2.3			0.79
		3.6		3.2			1.10
		5.0		4.0			1.50
		2.6	42.4	2.6			0.79
		3.6		3.6			1.10
		5.0		5.0			1.50
40	48.3	2.6	26.9	2.0	57	57	1.00
		3.6		3.2			1.40
		5.0		4.0			2.00
		2.6	33.7	2.3			1.00
		3.6		3.2			1.40
		5.0		4.5			2.00

		2.6	42.4	2.6			1.00
		3.6		3.6			1.40
		5.0		5.0			2.00
		2.6	48.3	2.6			1.00
		3.6		3.6			1.40
		5.0		5.0			2.00

DN	D	T	D1	T1	L	Macca, kr
20	26.9	2.0	21.3	2.0	38	0.05
		3.2		3.2		0.07
		4.0		4.0		0.09
25	33.7	2.3		2.0	51	0.09
		3.2		3.2		0.12
		4.5		4.0		0.16
		2.3	26.9	2.0		0.09
		3.2		3.2		0.012
		4.5		4.0		0.06
32	42.4	2.6	21.3	2.0		0.13
		3.6		3.2		0.17
		5.0		4.0		0.23
		2.6	26.9	2.0		0.13
		3.6		3.2		0.17
		5.0		4.0		0.23
		2.6	33.7	2.3		0.13
		3.6		3.2		0.17
		5.0		4.5		0.23
40	48.3	2.6	26.9	2.0	64	0.19
		3.6		3.2		0.25
		5.0		4.0		0.34
		2.6	33.7	2.3		0.19
		3.6		3.2		0.25
		5.0		4.5		0.34
		2.6	42.4	2.6		0.19
		3.6		3.6		0.25
		5.0		5.0		0.34
50	60.3	2.9	33.7	2.3	76	0.31
		4.0		3.2		0.42
		5.6		4.5		0.58
		2.9	42.4	2.6		0.31
		4.0		3.6		0.42
		5.6		5.0		0.58
		2.9	48.3	2.6		0.31
		4.0		3.6		0.42
		5.6		5.0		0.58
65	76.1	2.9	42.4	2.6	89	0.47
		5.0		3.6		0.78
		7.1		5.0		1.10
		2.9	48.3	2.6		0.47
		5.0		3.6		0.78
		7.1		5.0		1.10

Features of GOST 17375/GOST 17376/GOST 17378/GOST 17379 Factory-Made wrought Buttwelding Fittings

KIDY is a service-oriented enterprise that provides fittings for changing the direction of pipelines in pipeline systems. Butt welded elbows are made by welding two steel plates. Generally, large-diameter elbows are butt welded, so in industrial applications, elbows with a diameter of 600 or above are mostly butt welded. Other commonly used elbows in fluid pipeline engineering construction include 45 ° elbows and 180 ° elbows. Our company can also customize other non-standard elbows according to engineering needs.
